Product Overview
Ti-6Al-6V-2Sn wire is a high-strength alpha-beta titanium alloy wire commonly used in aerospace structures and high-performance hardware. It offers higher strength potential than Ti-6Al-4V in many conditions, with good corrosion resistance and heat-treatability. It is typically selected for demanding fastener and structural applications where high strength-to-weight ratio is required.
Komposisi Kimia
| Unsur | Content |
|---|---|
| Titanium | Keseimbangan |
| Aluminium | 5.50–6.50% |
| Vanadium | 5.50–6.50% |
| Tin | 1.50–2.50% |
| Besi | ≤ 0.40% |
| Oxygen | ≤ 0.20% |
| Karbon | ≤ 0,08% |
| Nitrogen | ≤ 0.05% |
| Hydrogen | ≤ 0.015% |
| Other elements | ≤ 0.10% each |
| Other elements total | ≤ 0.40% total |
Aplikasi Khas
- Aerospace fasteners and high-strength structural hardware
- Landing gear-related hardware and highly loaded components where applicable
- Clips, retainers, brackets, and formed-wire parts requiring high strength
- High-performance industrial components requiring heat-treatable titanium alloy strength
Common Sizes and Forms of Supply
- Diameter range: 0.10 mm to 6.00 mm

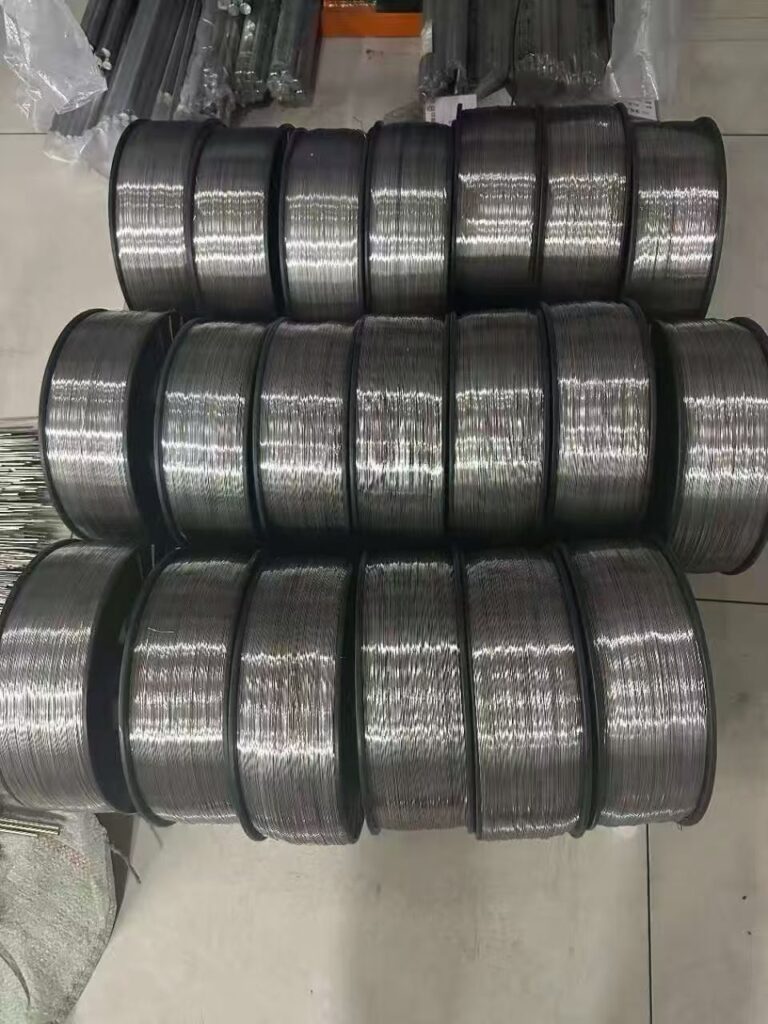

- Supply forms: spooled wire, coils, straightened and cut lengths
- Condition options: annealed, solution treated and aged, stress relieved per requirement
| Form of Supply | Typical Options |
|---|---|
| Spooled wire | Standard or custom spool formats, multiple spool weights |
| Kumparan | For downstream straightening and drawing |
| Straight lengths | Cut-to-length, traceability tagging available |
National Grade Designations
- International designation: Ti-6Al-6V-2Sn
- USA: commonly supplied per AMS requirements for Ti-6-6-2 programs; UNS designation used in some supply chains
- China: equivalency to be confirmed per GB/enterprise specification before substitution
- Russia/EU/Japan: confirm designation per governing standard for the program
Certifications and Standards
- ISO 9001 quality management system available
- EN 10204 3.1 inspection certificate available
- Chemical analysis and heat/lot traceability available per order
- AMS/ASTM compliance available when specified at purchase
Notes and Precautions
- This is a heat-treatable alloy; properties depend strongly on condition and heat treatment. Specify required tensile/elongation targets and condition when ordering.
- For welding or critical joining, use strict inert gas shielding and surface preparation to prevent oxygen and nitrogen pickup.
- Do not substitute for Ti-6Al-4V without verifying chemistry, heat treatment response, and design allowables.
