Product Overview
Ti-5Al-2.5Sn wire is a near-alpha titanium alloy wire developed for good elevated-temperature capability and stable mechanical performance. It is commonly used in aerospace and high-performance industrial applications where improved strength and creep resistance are needed compared with commercially pure titanium, while maintaining good corrosion resistance and weldability under controlled conditions.
Composizione chimica
| Elemento | Content |
|---|---|
| Titanium | Equilibrio |
| Alluminio | 4.50–5.50% |
| Tin | 2.00–3.00% |
| Ferro | ≤ 0,25% |
| Oxygen | ≤ 0.20% |
| Carbonio | ≤ 0,08% |
| Nitrogen | ≤ 0.05% |
| Hydrogen | ≤ 0.015% |
| Other elements | ≤ 0.10% each |
| Other elements total | ≤ 0.40% total |
Applicazioni tipiche
- Aerospace components requiring moderate elevated-temperature performance
- Formed-wire parts, clips, clamps, and retainers for thermal cycling environments
- Industrial hardware exposed to heat and corrosive media
- Wire feedstock for specialty joining applications when specified

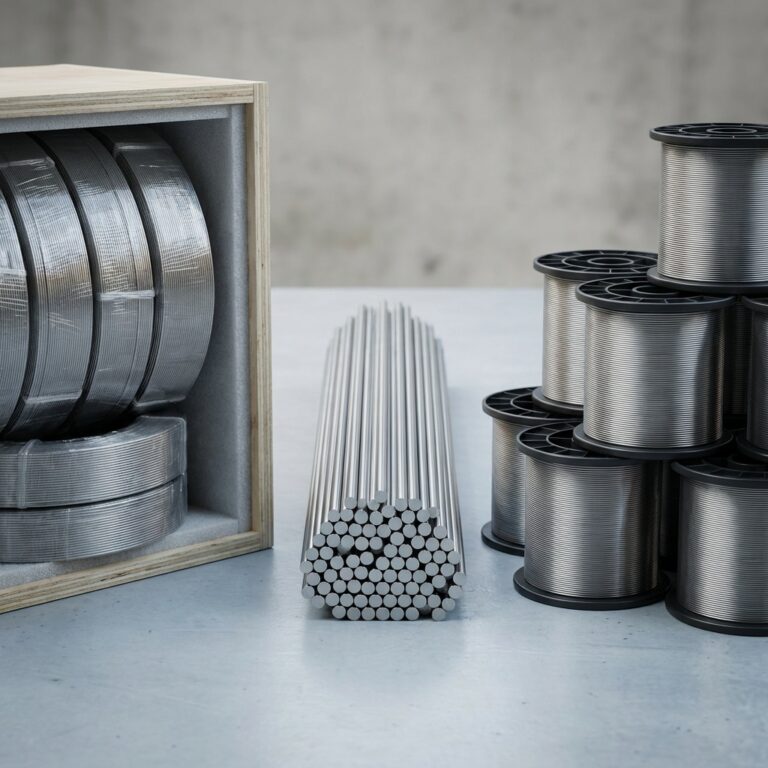

Common Sizes and Forms of Supply
- Diameter range: 0.10 mm to 6.00 mm
- Supply forms: spooled wire, coils, straightened and cut lengths
- Condition options: annealed, cold-worked, stress relieved per requirement
| Diameter Category | Gamma di diametri | Common Uses |
|---|---|---|
| Fine wire | 0.10–1.00 mm | precision formed parts and retainers |
| Medium wire | 1.00–6.00 mm | general fabrication, springs, clips |
National Grade Designations
- International designation: Ti-5Al-2.5Sn
- USA: UNS R54520 (commonly referenced), supplied per ASTM/AMS requirement
- China: equivalency to be confirmed per GB/enterprise specification before substitution
- Russia: PT-3V is not equivalent; confirm exact requirement before use
Certifications and Standards
- ISO 9001 quality management system available
- EN 10204 3.1 inspection certificate available
- Chemical analysis and heat/lot traceability available per order
- ASTM/AMS compliance available when specified at purchase
Notes and Precautions
- Mechanical properties depend on diameter, processing route, and heat treatment condition; specify your required condition (annealed/cold-worked/stress relieved).
- For welding or critical joining, strict cleanliness and inert gas shielding are required per your WPS to prevent oxygen pickup.
- Do not substitute “similar” alloys without confirming chemistry and allowable data under the governing standard.
